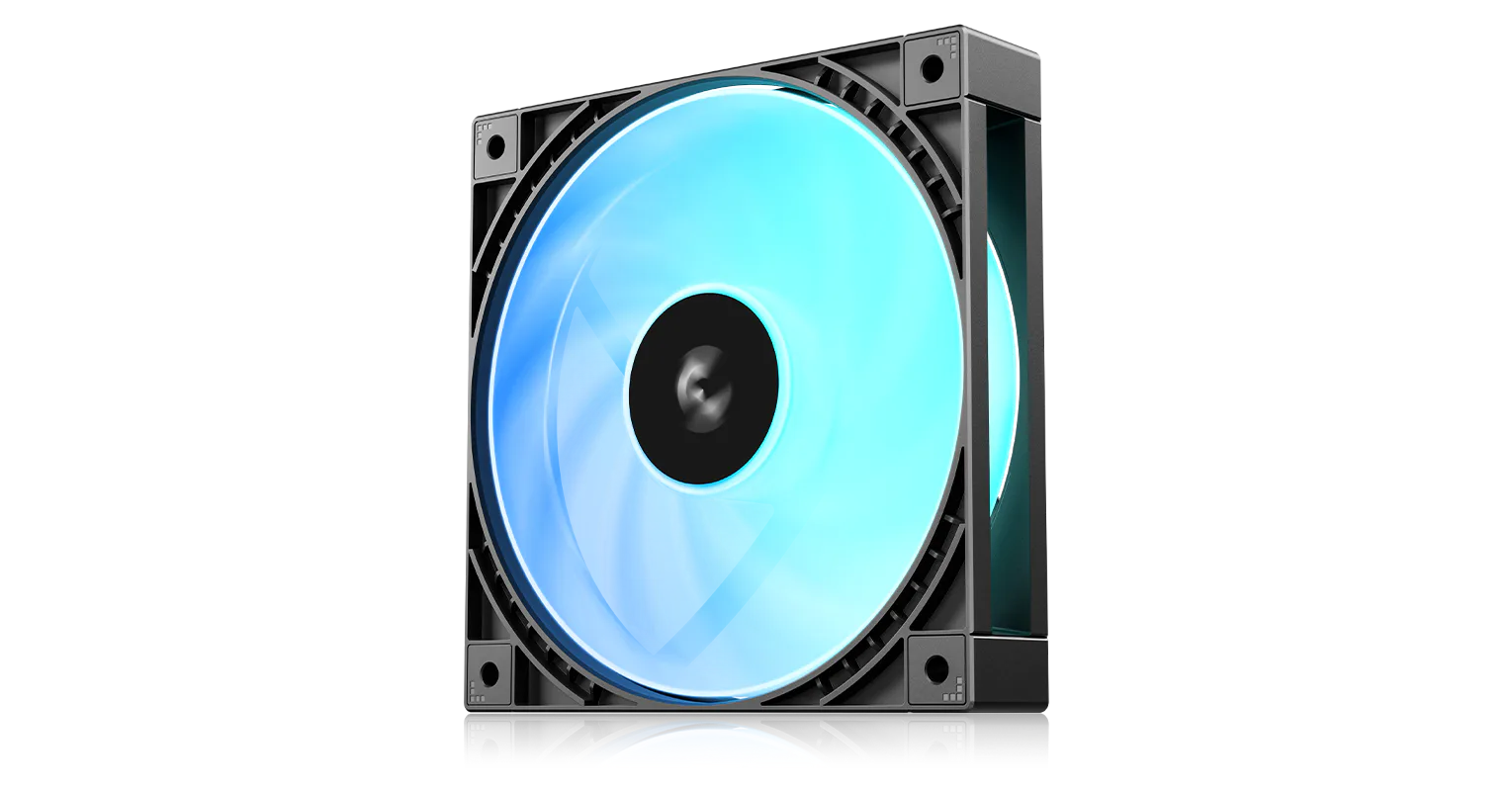

DeepCool FD12 ARGB V2 120mm PWM Case Fan with Integral Blade & Hydro Bearing, 56.31 CFM, 1900 RPM, ARGB LED
โ˜… 0.0 Rating (0 user feedback)

SKU: R-FD12ARGBV2-BKAPN1-G

Availability: In Stock

Brand: DeepCool

Category: Cooling & Fans

$19.00


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

DeepCool FD12 ARGB V2 120mm Case Fan delivers enhanced cooling performance with advanced aerodynamic design and vibrant lighting. Featuring an all-new closed-wheel integral blade-tip ring, it focuses airflow while minimizing acoustic dead zones to ensure efficient heat dissipation without excessive noise.

Powered by a 4-pin PWM fan connector, it operates between 500 and 1900 RPM (ยฑ10%), producing a maximum airflow of 56.31 CFM and static pressure of 1.48 mmAq, ideal for case ventilation and CPU coolers requiring focused airflow.

The fan blades are crafted from polycarbonate and the frame uses a durable PBT-based composite, both engineered for reduced noise and long-lasting consistency. It employs a hydro (fluid dynamic) bearing to maximize lifespan and minimize operational friction.

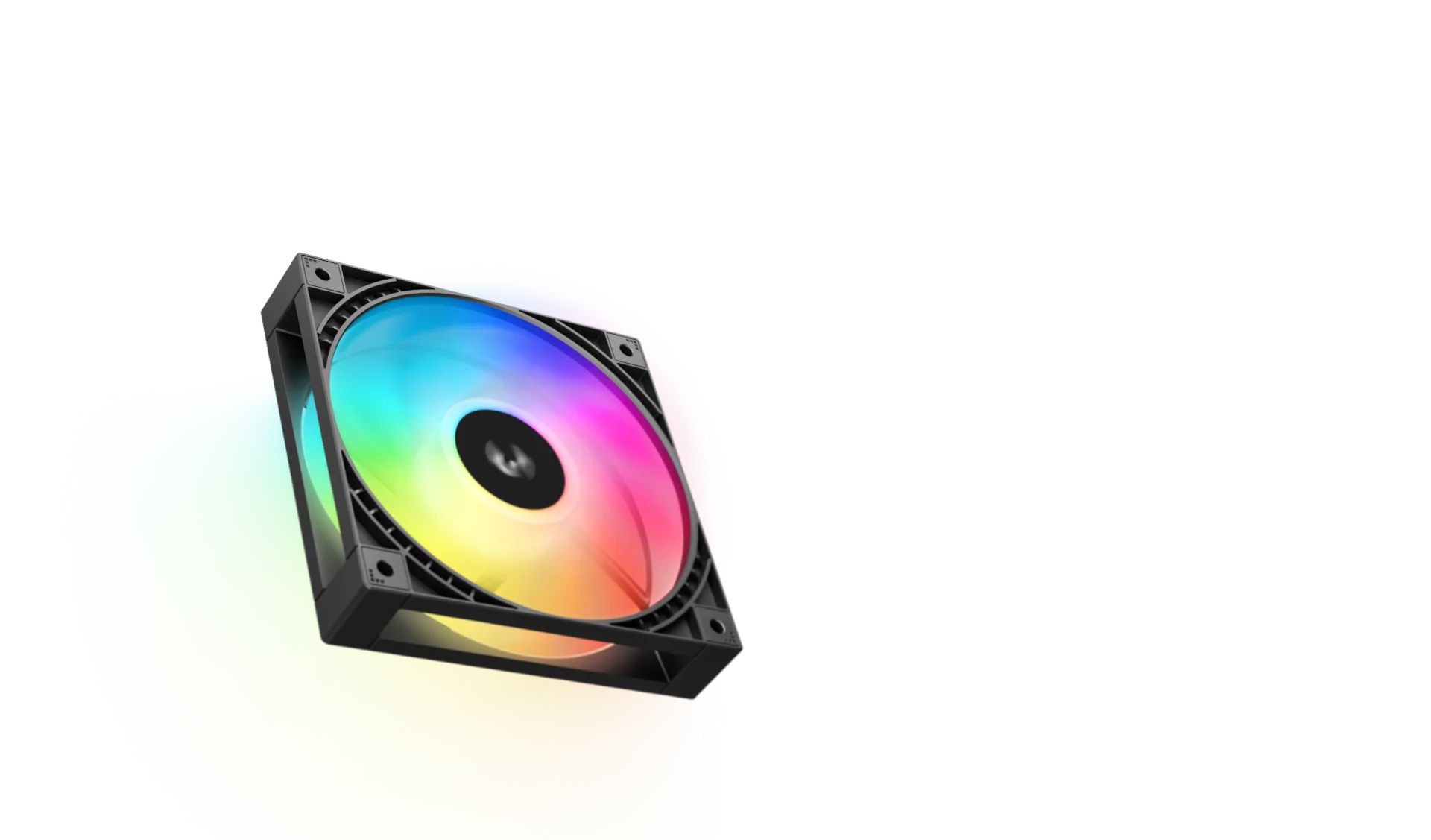

Lighting is controlled via nine addressable RGB LEDs arranged around the hub, visible from the front and sides, compatible with 5V 3-pin ARGB standards, and supports convenient daisy-chain connections using the integrated 8-pin PWM+ARGB connector.

Noise levels remain impressively low, with front noise at โ‰ค26.57 dB(A) and side noise at โ‰ค24.27 dB(A), making it suitable for silent PC builds that do not compromise on cooling performance.

Backed by a 3-year limited manufacturer warranty, the FD12 ARGB V2 is engineered to bring both aesthetics and functionality to your custom PC build or upgrade.

General

Product NumberR-FD12ARGBV2-BKAPN1-G
Operating VoltageFan 12 V DC,LEDs 5 V DC
Blade MaterialPolycarbonate
Frame MaterialPBT-based composite
LED Connector3-pin 5V ARGB
Fan Connector4-pin PWM
Fan Speed500\u20131900 RPM \u00b110%
Airflow56.31 CFM
Fan Dimension120\u00d7120\u00d725 mm
Fan Speed (RPM)500\u20131900 RPM \u00b110%
num_fans1

Physical

Weight141 g
Noise Levelโ‰ค26.57 dB(A) front,โ‰ค24.27 dB(A) side
Connector TypeFan: 4-pin PWM; LED: 3-pin 5V ARGB
fan_dimensions_mm120\u00d7120\u00d725
weight_kg0.141
Weight (g)141

Support

Warranty3 years (limited)

Power

Power ConsumptionFan: 1.44 W,LED: 1.70 W
Power Consumption (W)3.14

Performance

Static Pressure1.48 mmAq
static_pressure_mm_h2o1.48
fan_noise_db26.57
max_airflow_cfm56.31
Air Pressure UnitmmAq
Airflow UnitCFM

Lighting

LED Type9 Addressable RGB LEDs
LEDs per Fan9
LED Type9 Addressable RGB LEDs

Technical

Bearing TypeHydro (fluid dynamic) bearing
Bearing TypeHydro (fluid dynamic) bearing
Fan TypePWM

Electrical

Current Draw (Fan)0.12
Rated Voltage (Fan)12

Identifiers

Model NumberR-FD12ARGBV2-BKAPN1-G

Identification

Part NumberR-FD12ARGBV2-BKAPN1-G
ManufacturerDeepCool

Warranty

Warranty (years)3
